| TE25 | TE25LR | TE32 | TE32LR | TE42 | TE50 | TE50LR | |
|---|---|---|---|---|---|---|---|
| Max tube ø | 1x.08" at 58 Ksi / 25,4x2 mm at400N/mm² | 1x.08" at 58 Ksi / 25,4x2 mm at400N/mm² | 1.25x.08" at 58 Ksi / 32x2 mm at 400N/mm² | 1.25x.10" at 58 Ksi / 32x2,5 mm at 400N/mm² | 1.65x.10" at 58 Ksi / 42x2,5 mm at 400N/mm² | 2x.08" at 58 Ksi / 50x2 mm at 400N/mm² | 2x.08" at 58 Ksi / 50x2 mm at 400N/mm² |
| Tube length | 79 to 157" / 2000 to 4000 mm | 79 to 157" / 2000 to 4000 mm | 79 to 157" / 2000 to 4000 mm | 79 or 120" / 2000 or 3000 mm | 79 to 157" / 2000 to 4000 mm | 79 to 157" / 2000 to 4000 mm | 79 or 120" / 2000 mm |
| Max bending raidus | 6" / 150 mm | 5" / 125 mm | 6" / 150 mm | 6" / 150 mm | 6" / 150 mm | 6" / 150 mm | 6" / 150 mm |
| Bending tools | 4 Left or right | 4 Left and right | 4 Left or right | 2x3 Left and right | 3 Right | 4 Left or right | 2x3 Left and right |

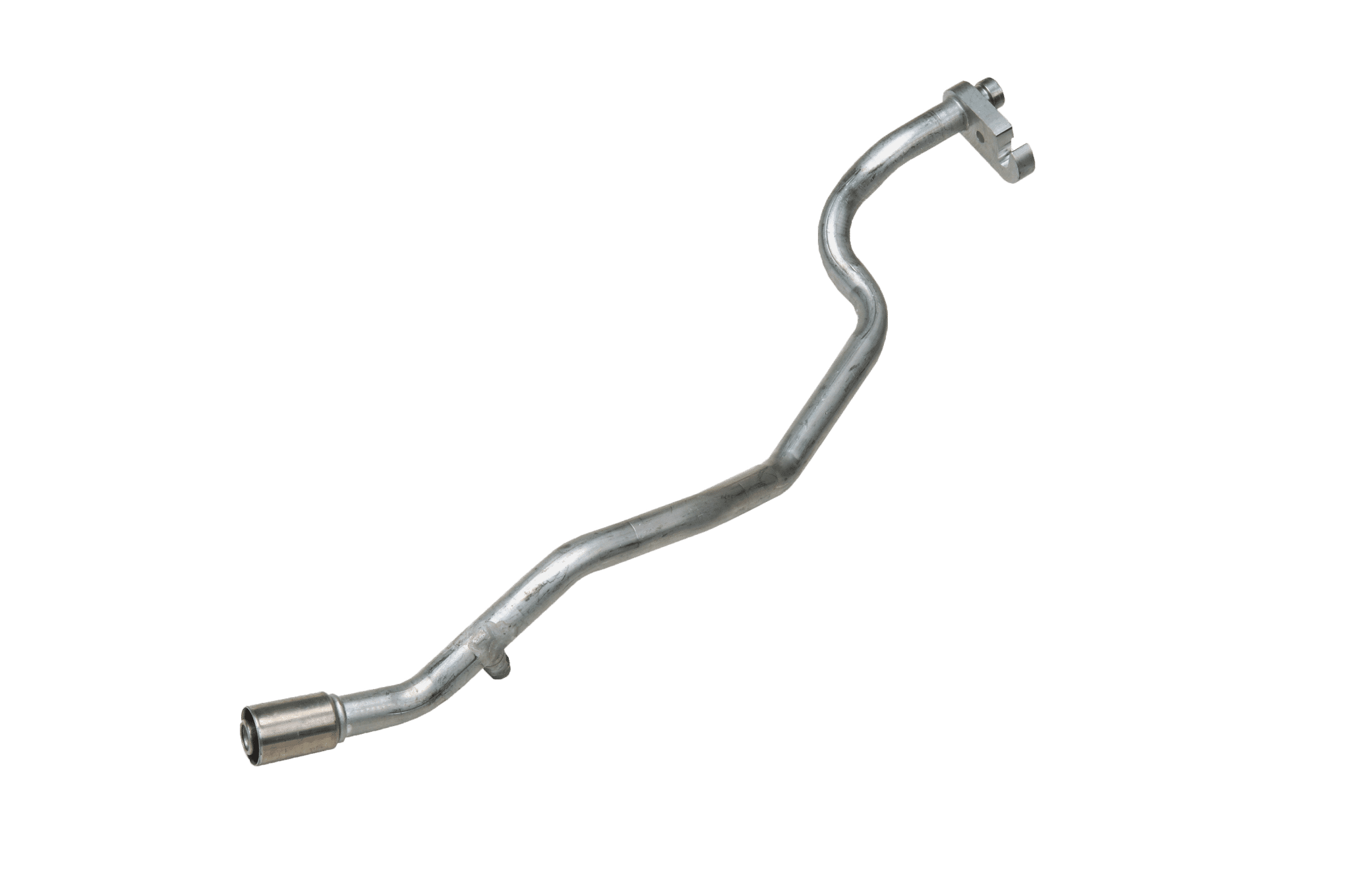

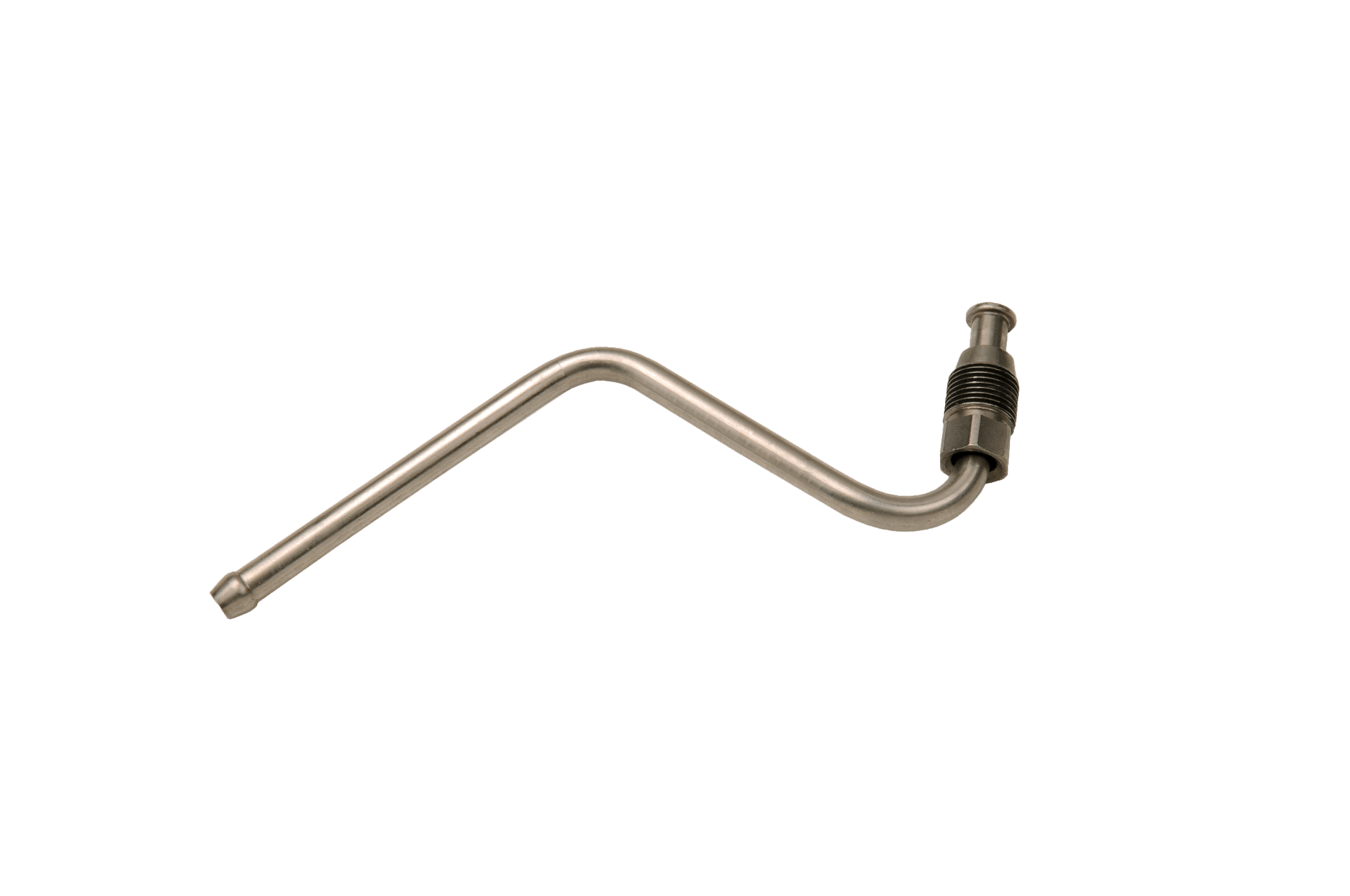

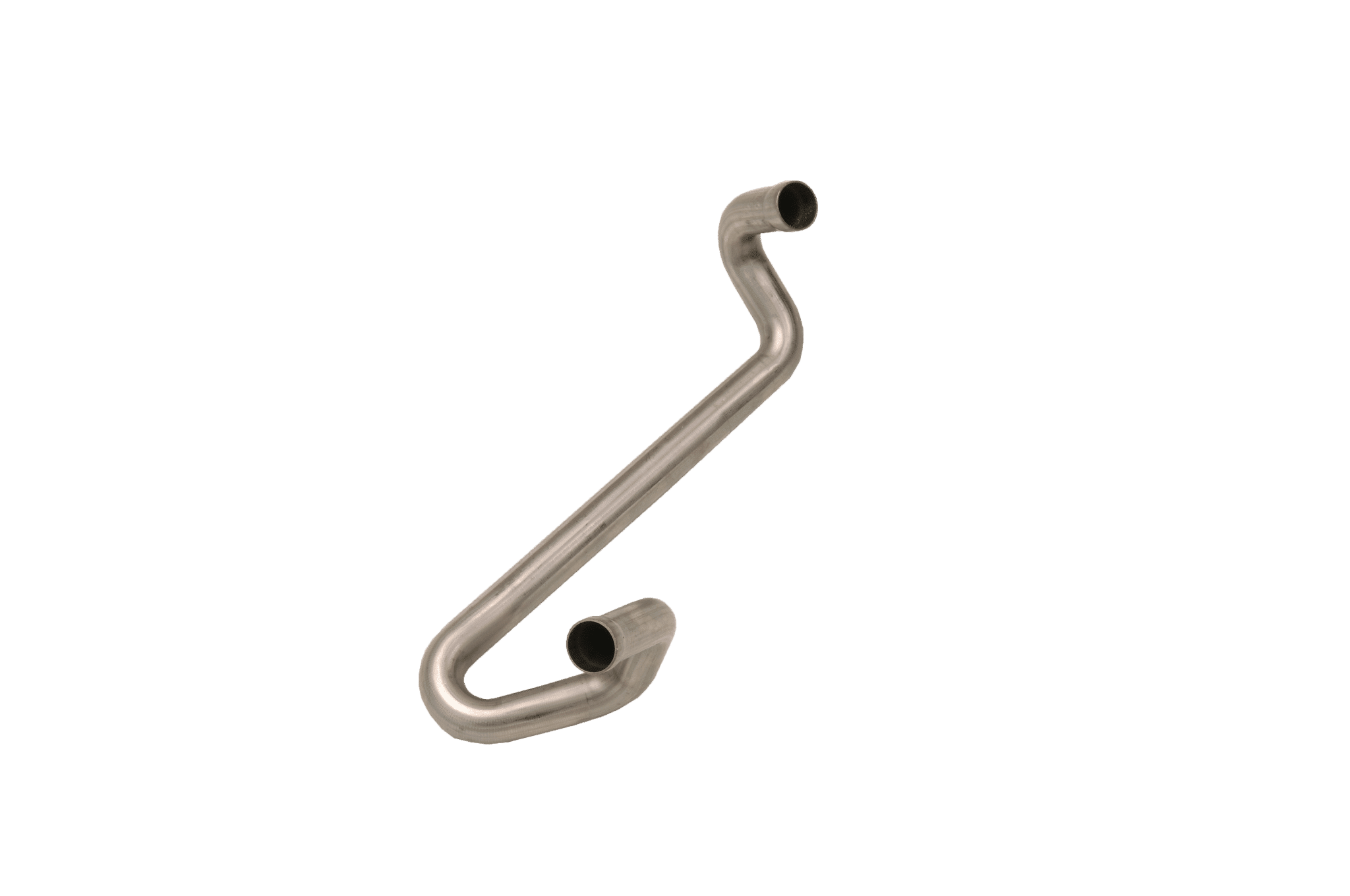

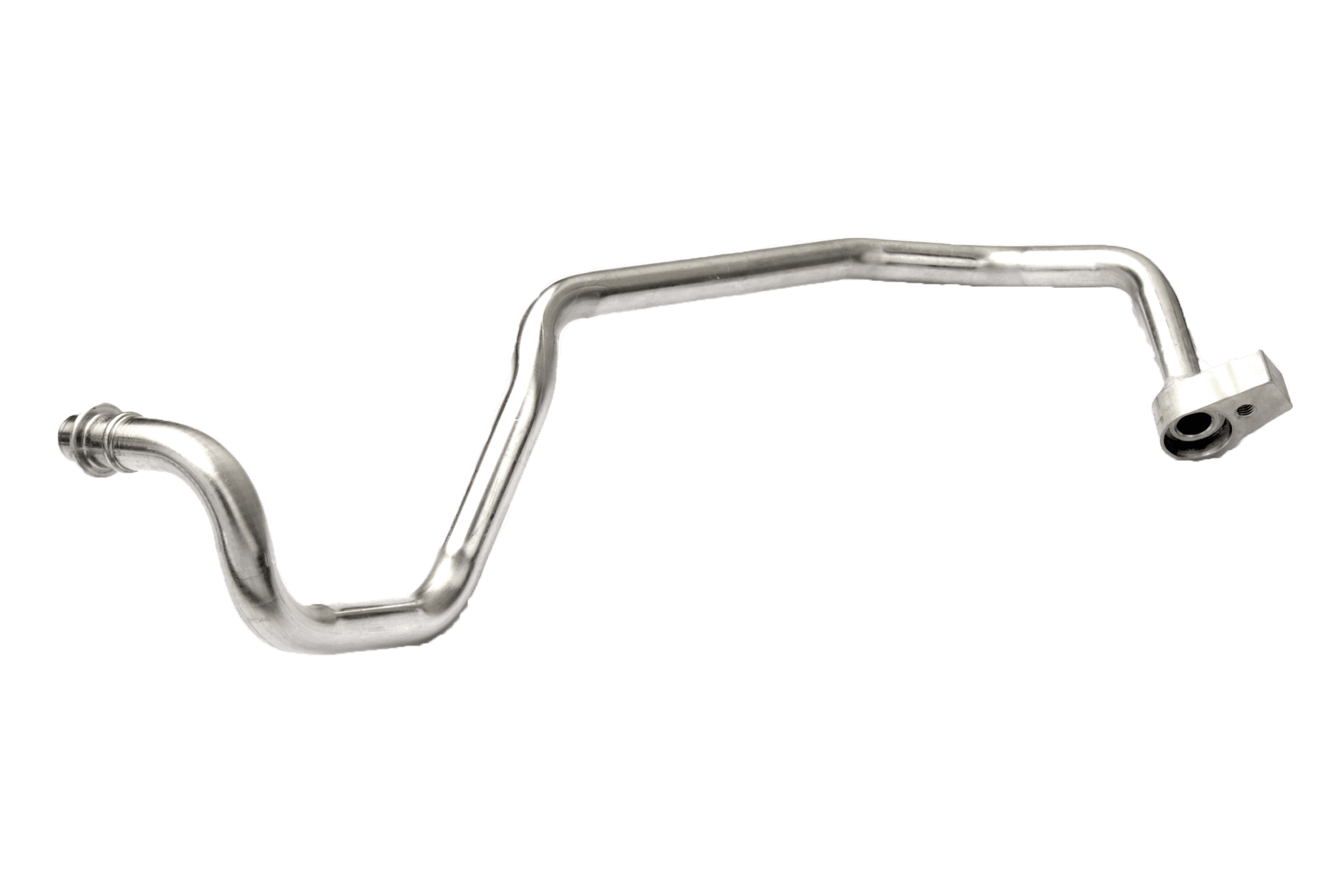

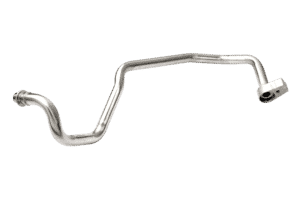

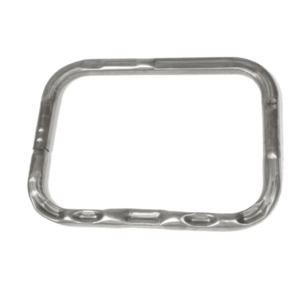

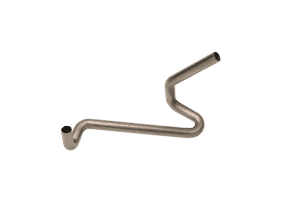

Parts made on CNC pipe bender TE Medium
Main features
- From .40″ to 2x.08″ / 10 to 50×2 mm
- Applications : Automotive H.V.A.C., ERG Tube, structure parts, fuel, seats
- Air et Space : hydraulic piping, circulation control wing, fuel, structure
- Main features : all electric benders
- Stackable multi-radii
- Draw bending with and without mandrel and roll bending
- Possibility to combine bending with complementary operations
Man / Machine interface
- Industrial-Grade PC powered by proprietary software
- Multilingual dialog and programming interface on a 19″ touch screen
- Simulation program
- Additional I/O
- Internet connection: remote assistance and chat room
- Auto-corrective feedback from 3D-measuring devices
- Tool editor allows programming of complex parts
- Simulation tool to facilitate part set-up
- Program execution in slow motion
